Precision Grinding Perfected: How QHMAG’s Zero-Distortion Electro-Permanent Chucks Slash Setup Time 80%

2025-06-26

1. The $280k/year Hidden Cost in Precision Grinding

We scrapped $38,000 worth of aerospace blades due to clamping distortion," recalls James K., lead grinder at a Chicago tooling shop. His frustration echoes across the industry:

Workpiece warping: Causes 22% scrap rate on thin components (<3mm)

Vacuum pump failures: 45 minutes downtime per incident (SME Benchmark Data)

Manual repositioning: Eats 30% of productive grinding time

2. Why Traditional Workholding Fails Precision Grinding

Problem 1: Vacuum System Nightmares

Those humming vacuum pumps aren’t just noisy – they’re profit killers:
✓ 15kW energy hogs costing $18k/year in electricity
✓ Seal failures leak coolant into pumps ($7k repair)
✓ Limited hold force = 0.1mm workpiece lift during grinding

Problem 2: Mechanical Distortion Dilemma

Mechanical clamps create deadly trade-offs:

High pressure: Warps thin parts (0.05mm deviation @ 50 PSI)

Low pressure: Vibration marks ruin surface finish (Ra >0.8μm)

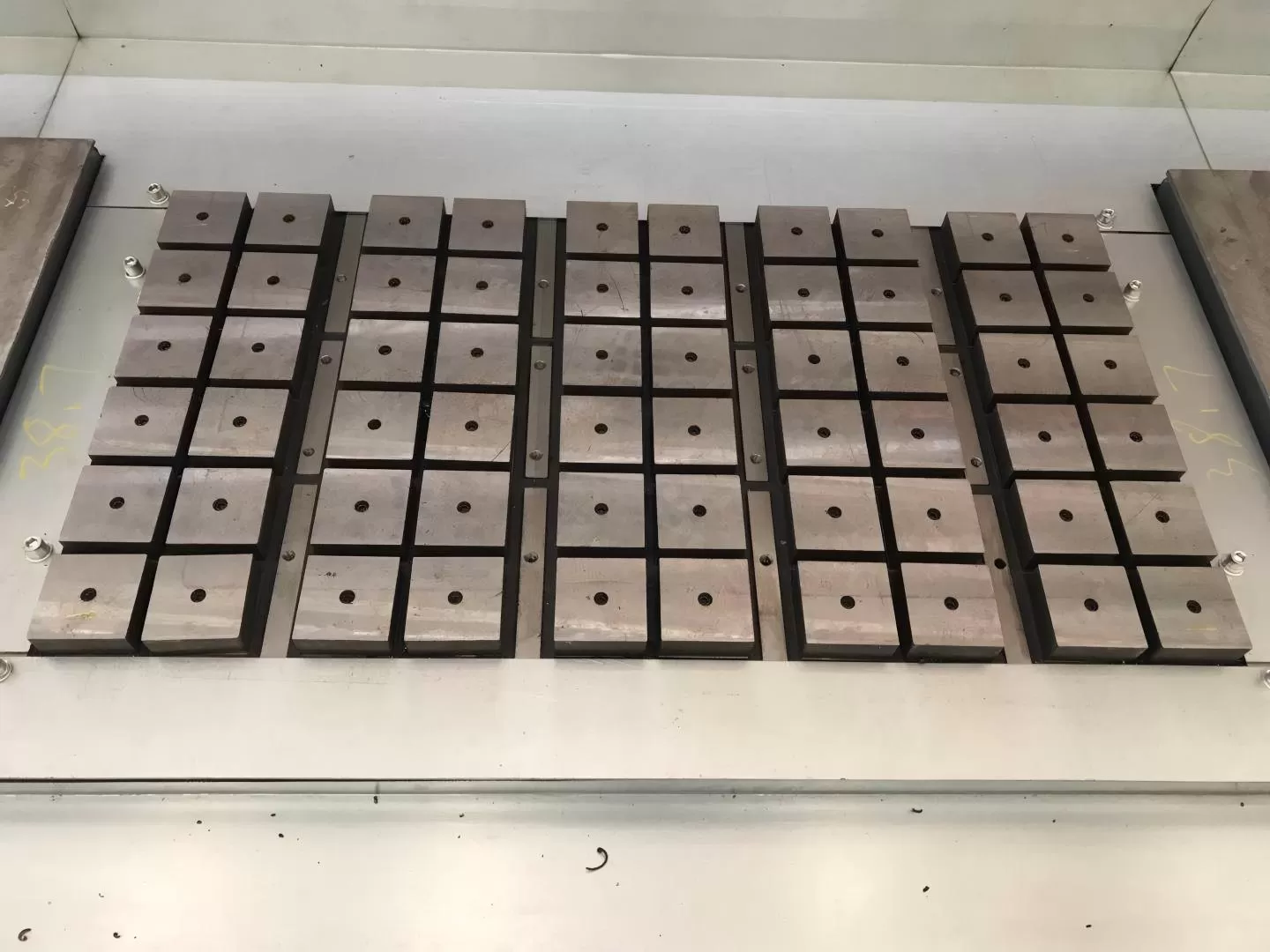

3. Electro-Permanent Tech: The Distortion Killer

QHMAG’s breakthrough isn’t magic – it’s quantum magnetic control:

Zero-pressure grip: 12,000 N/cm² hold force without physical contact

Instant on/off: 1-sec magnetization/demagnetization cycles

Self-shielding flux: <0.5% residual magnetism after release (ASTM A341)
SPI test results: 0.002mm flatness deviation on 1mm stainless shims

4. Real-World Wins: Grinders Speak Out

Case 1: Boeing Blade Supplier (Seattle)

We achieved Ra 0.2μm on titanium blades consistently," states QA head Elena M. Gains unlocked:

Scrap rate drop: 18% → 0.3%

Setup time cut: 45 min → 8 min per batch

Energy saved: $15k/year vs vacuum systems

Case 2: Medical Implant Grinder (Minnesota)

Challenge: 316L stainless stems moving during finish grinding

Solution: QHMAG’s non-contact chuck with 0.001mm flatness

Result: Zero FDA non-conformances in 24 months

5. ROI Reality Check

Calculate your savings:

Annual Savings =  (Scrap Cost Reduction) +  (Energy Savings) +  (30 min/batch × Batches/day × $0.5/min)
